ASTM A283 steel plate is a specification for carbon steel plates intended for use in low to moderate strength requirements. This material is primarily used for structural and construction purposes, making it versatile for a wide range of applications. It covers Grade C and D, both applied for general structural construction.

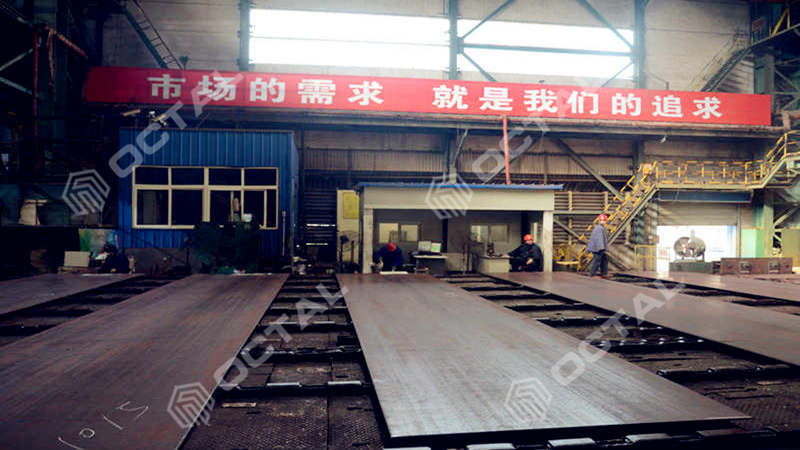

ASTM A283 Grade C Steel Plate
A283 steel plates could be produced by plate type and coil type, in case it made from coil type and furnished without heat treatment or with stress relieving only, the addtional requirements, including additional test methods and test result, shall comply with A6/A6M specification.
Reference Standards:
- ASTM A6/A6M: For general requirements for rolled structural steel bars, plates, shaples and sheet piles.
ASTM A283 Plates Data Sheet
Chemical Composition of ASTM A283 Grade C & D
Table 1:
Elements | Heat Analysis, % | ||
|---|---|---|---|
Grade C | Grade D | ||
Carbon, max | 0.24 | 0.27 | |
Manganese, max | 0.90 | 0.90 | |
Phosphorus, max | 0.030 | 0.030 | |
Sulfur, max | 0.030 | 0.030 | |
Silicon Plates 1-1/2in. [40mm] and under, max Plates over 1-1/2in. [40mm] | 0.40 0.15-0.40 | 0.40 0.15-0.40 | |
Copper, min % when copper is specified | 0.20 | 0.20 | |
Mechanical Properties
Table 2:
Grade C | Grade D | |
|---|---|---|
Tensile strength, ksi [MPa] | 55-75 | 60-80 [415-550] |
Yield point, min, ksi [Mpa] | 30 | 33 [230] |
Elongation in 8 in. [200 mm], min, %B | 22 | 20 |
Elogination in 2 in. [50mm], min, %B | 25 | 23 |
B: For plates wider than 24 in. [600 mm], the elgonation requirement is reduced 2%.
Key Differences:
- Carbon Content: ASTM A283 Grade D has a lower maximum carbon content compared to Grade C, which can result in slightly improved weldability and toughness.
- Mechanical Properties: While both grades share similar yield and tensile strengths, the elongation percentage differs, with Grade C typically exhibiting higher ductility.
Applications:
Both ASTM A283 Grade C and D plates are used in:
- Construction of bridges and buildings.
- Manufacturing of structural components and equipment.
- Production of pressure vessels and storage tanks.
- General fabrication and structural applications where moderate strength is sufficient.
Manufacturing Process of ASTM A283 Grade C & D Plate
The steel shall be killed and made by one or more of the following processes:
- Open-hearth
- Basic-oxygen
- Electric furnace
General Requirements for Delivery
ASTM A283 plates shall comply with A6/A6M, coils are exlcuded from this specification until they are cutted to finished plates.
Keywords
Carbon Steel; Plates, Coils; Structal Quality.
Supplementary Requirements under A283
These are not applied unless agreed by the buyer and seller, which listed in Specfication of A6/A6M.
S2. Product Analysis
S3. Simulated Post-Weld Heat Treatment of Mechanical Test Coupons.
S5. Charpy V-Notch Impact Test
S6. Drop Weight Test (For thickness equal and above 16mm [0.625in])
S8. Ultrasonic Examination.
S15. Reduction of Area.
Our Supply Range:
Description: Carbon Steel ASTM A283 Grade C & D
Manufacturing Types: Hot Rolled
Thickness: 2 to 150 mm
Width: 0.6m to 3m
Length: 6m, 12m, customized
Surface: Natural, Painted
Packing: Standard sea packing, bundled with streel strip.
